Sprinkler Sprayer Product Introduction
The sprinkler sprayer is a three-point hitch sprayer suitable for small tractors equipped with Category 1 hitch systems and large tractors with Category 2 hitch systems. It allows direct adjustment of the spray boom height via the tractor's lifting mechanism, making the height adjustment of the sprayer boom extremely quick and easy. The three-point hitch sprayer can be ordered with a PTO (Power Take-Off) driven pump, which is compatible with nearly all tractor models available on the market today.
Advantages
Tank Capacity and Spraying Width Options
The tank capacity ranges from 400 liters to 1200 liters, and the spraying width can reach up to 24 meters (79 feet). Users can select specific models based on their actual working conditions.
Three-Point Hitch Design
It features a robust three-point hitch system, which uses high-quality steel components to secure the compactly designed frame, ensuring stability during operation.
Ground Support Wheels
Ground support wheels are included to assist with the movement of the sprayer, reducing the effort required for repositioning when not attached to the tractor.

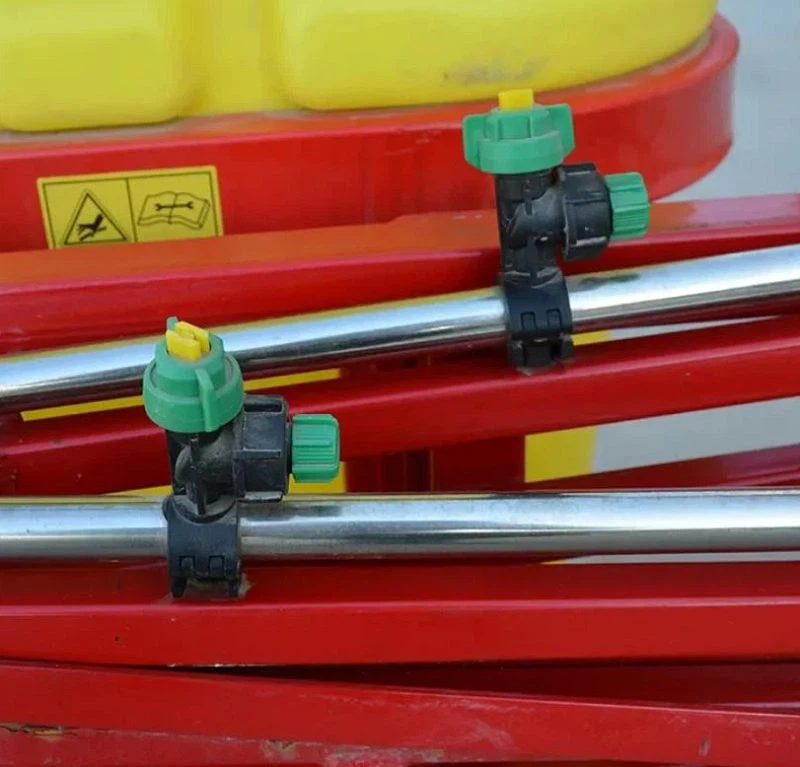

Stainless Steel BOM and Plastic Nozzles
The water boom is made of stainless steel with a thickness of 1.5 mm, providing sufficient strength to prevent damage from dropping and avoid leakage issues, ensuring long-term reliable use.
Washing Tank
A dedicated washing tank is provided, facilitating the cleaning of the sprayer's internal components and nozzles after use, which helps maintain the equipment's performance.

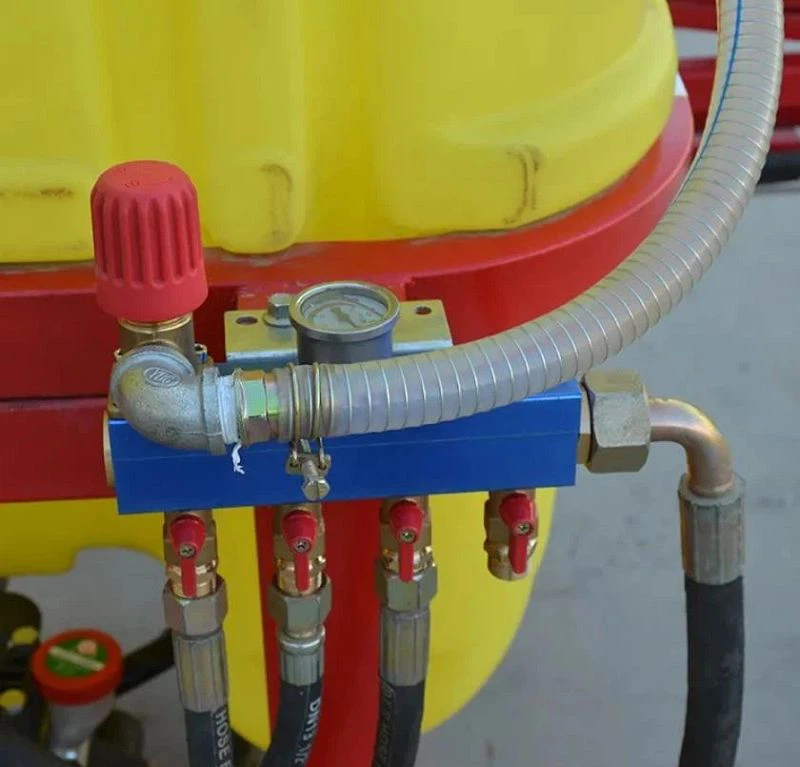

Water Manifold
A three-valve manifold made of plastic and alloy materials is supplied, and it covers the internal jet agitator, ensuring efficient mixing of liquids inside the tank.

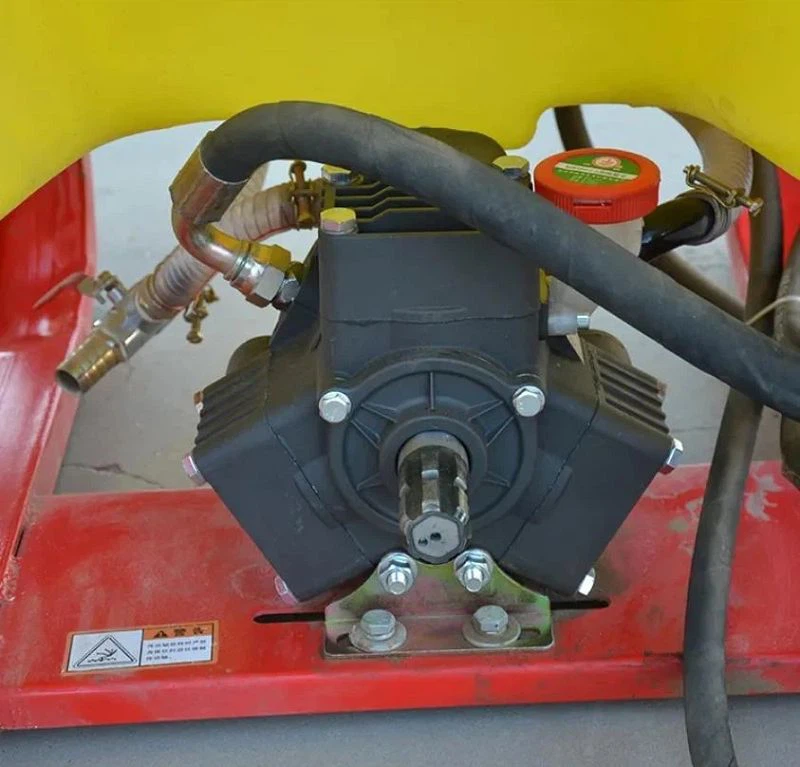

Diaphragm Pump
Brand-name diaphragm pumps are equipped, available in 3-cylinder, 4-cylinder, and 6-cylinder configurations to meet different pressure and flow requirements.
PTO Shaft
The PTO shaft comes with a plastic cover, which protects the shaft from dust, debris, and external damage during operation and storage.
Detailed Display
After-Sales Service
Warranty: Major parts come with a 12-month warranty. Warranty parts will be shipped together with the machine in your next order. If you have an urgent need, we can send the parts via air courier for quick delivery.
Delivery Time
After the order is confirmed, delivery will be made within 15 days. If your order quantity is large, the delivery time needs to be discussed, but it will not exceed 30 days.
Payment Terms
As usual, a 30% deposit is required after the order is confirmed, and the remaining 70% balance should be paid after the goods are shipped.
We are capable of processing products according to your drawings or samples to meet your customized requirements.
Frequently Asked Questions (FAQ)
Q: Can the spraying range and flow rate of the sprinkler sprayer be adjusted according to operational needs?
A: Yes, they can be flexibly adjusted. Most models are equipped with adjustable nozzles and flow control valves. The spraying radius can be adjusted from 1 to 10 meters as needed, and the flow rate can also be controlled via a knob or intelligent panel (e.g., 0.5 to 2 cubic meters per mu). This enables the sprayer to meet the needs of precise irrigation for small-scale nurseries and large-area spraying for extensive farmlands.
Q: Can this sprayer realize irrigation, fertilization, and pesticide application functions simultaneously? Is additional modification required?
A: It supports multi-functional integration without the need for additional modification. The equipment is equipped with a built-in liquid/fertilizer mixing tank. After adding soluble fertilizers or pesticides in proportion, the built-in stirring device mixes them evenly, and then the mixture is atomized and sprayed through the nozzles along with the water flow. This realizes integrated operations of irrigation, fertilization, and pesticide application, significantly saving labor and time costs.
Q: In case of power failure or power system malfunction during outdoor operations, will the sprayer have problems such as water leakage or failure to stop?
A: No, it will not. The equipment is equipped with a dual safety protection mechanism. Electric models have a built-in automatic valve closing function when power is cut off, while fuel-powered models are equipped with an emergency stop button. Once a malfunction occurs, the nozzles and pipelines will immediately cut off the water flow to avoid water waste due to leakage. Some high-end models are also equipped with pressure overload protection to prevent damage to components.
Q: The nozzles are prone to clogging by impurities. How to clean and maintain them daily? Are there any anti-clogging designs?
A: Cleaning and maintenance are simple, and the sprayer is designed with anti-clogging features. For prevention, the water inlet is equipped with a high-density filter screen that can filter out impurities such as sediment and weeds. For cleaning, you only need to unscrew the nozzle cap and rinse the filter screen and nozzle holes with clean water. Some models are also equipped with a dedicated unclogging needle to handle stubborn clogs. It is recommended to rinse the pipelines after each operation to reduce the accumulation of residual impurities.
Q: Which crops and terrains are suitable for the sprinkler sprayer? Will operation on mountainous or sloped terrain affect the spraying uniformity?
A: It has a wide range of applications and can adapt to complex terrains. It is suitable for various crops such as vegetables, fruit trees, and lawns, as well as different terrains including plains, mountains, and slopes. For sloped terrain, some models are equipped with adjustable brackets that can adjust the nozzle angle (0-360°). Combined with the pressure stabilization system, it ensures uniform spraying amount on both uphill and downhill slopes, avoiding local waterlogging or drought.
Q: What is the battery life of the equipment? Which operation scenarios are suitable for battery-powered models and fuel-powered models respectively?
A: The battery life varies depending on the model, and they are suitable for different scenarios. Battery-powered models (e.g., 12V lithium battery) can operate continuously for 4-8 hours when fully charged. They have low noise and zero emissions, making them suitable for scenarios with high environmental requirements such as urban greening and indoor nurseries. Fuel-powered models (e.g., 170F gasoline engine) can operate for 8-12 hours when fully refueled. They have strong power and long battery life, making them more suitable for long-term outdoor operation scenarios such as remote farmlands and large-scale orchards.
