Woye Machinery focuses on creating efficient work attachments suitable for tractors. Its TZ series front-end loaders and LW series backhoes, with the core advantages of "high adaptability, strong practicability, and high cost performance", are widely used in various scenarios such as agricultural cultivation, engineering infrastructure, and site arrangement, providing users with flexible and economical work solutions.
Product Parameters
| Woye TZ Series Front End Loader | ||||||
| LOADER MODEL | TZ-3 | TZ-4 | TZ-8 | TZ-10 | TZ-12 | |
| DIMENSION | 4100x1600x1580mm | 4400x1600x1880mm | 4900x1739x2494 mm | 5010x1800x2594mm | 5350x1800x3000mm | |
| MAX. DUMP HEIGHT | 2525 mm | 2850 mm | 3500 mm | 3650 mm | 3800 mm | |
| DUMP DISTANCE | 900 mm | 900 mm | 1180 mm | 1180 mm | 1200mm | |
| ROLLBACK ANGLE | 420 | |||||
| SCRAP DEPTH | 100 mm | 150 mm | 160 mm | 160 mm | 160 mm | |
| BUCKET VOLUME | 0.20m³ | 0.27m³ | 0.43m³ | 0.60m | 0.65m³ | |
| LIFT CAPACITY | 400~600kg | 500~700kg | 600~800kg | 800~1000kg | 1000~1200kg | |
| MATCHED POWER | 25-50hp | 40-60hp | 70-100hp | 90-150hp | 140-180hp | |
· Simple structure, easy operation, cheap price.
· There are various models. Adapting to large, medium and small tractors.
· For fast-moving design between the bucket and the lifting arm, the bucket can be easily removed. Our factory provides various types of buckets for you to choose from to meet different production needs.
| Woye LW Series Backhoe | |||||||||
| BACKHOE MODEL | LW-6 | LW-7 | LW-8 | LW-9 | LW-10 | LW-12 | |||
| DIG DEPTH | 1850mm | 2150 mm | 2640 mm | 2900 mm | 3000 mm | 3500 mm | |||
| DIG HEIGHT | 2500 mm | 3400 mm | 3510 mm | 3900 mm | 4000 mm | 4300 mm | |||
| DIG FORCE | 1300 kg | 1400 kg | 1600 kg | 1900 kg | 2600 kg | 2700 kg | |||
| BUCKET WIDTH | 300 mm | 400 mm | 450 mm | 480 mm | 500 mm | 550 mm | |||
| BUCKET VOLUME | 0.03 m³ | 0.036 m³ | 0.048 m³ | 0.054 m³ | 0.06 m³ | 0.07m³ | |||
| Matched Power | 25-50hp | 40-60hp | 70-100hp | 90-150hp | 140-180hp | 180hp-210hp | |||
·Use three point suspension to connect with the tractor. Move flexible.
· The hydraulic oil pump is connected to the PTO. The power source comes from the rear power output shaft of the tractor. The structure is simple and the maintenance is convenient.
· Price is cheap. It is the perfect alternative of a small excavator.

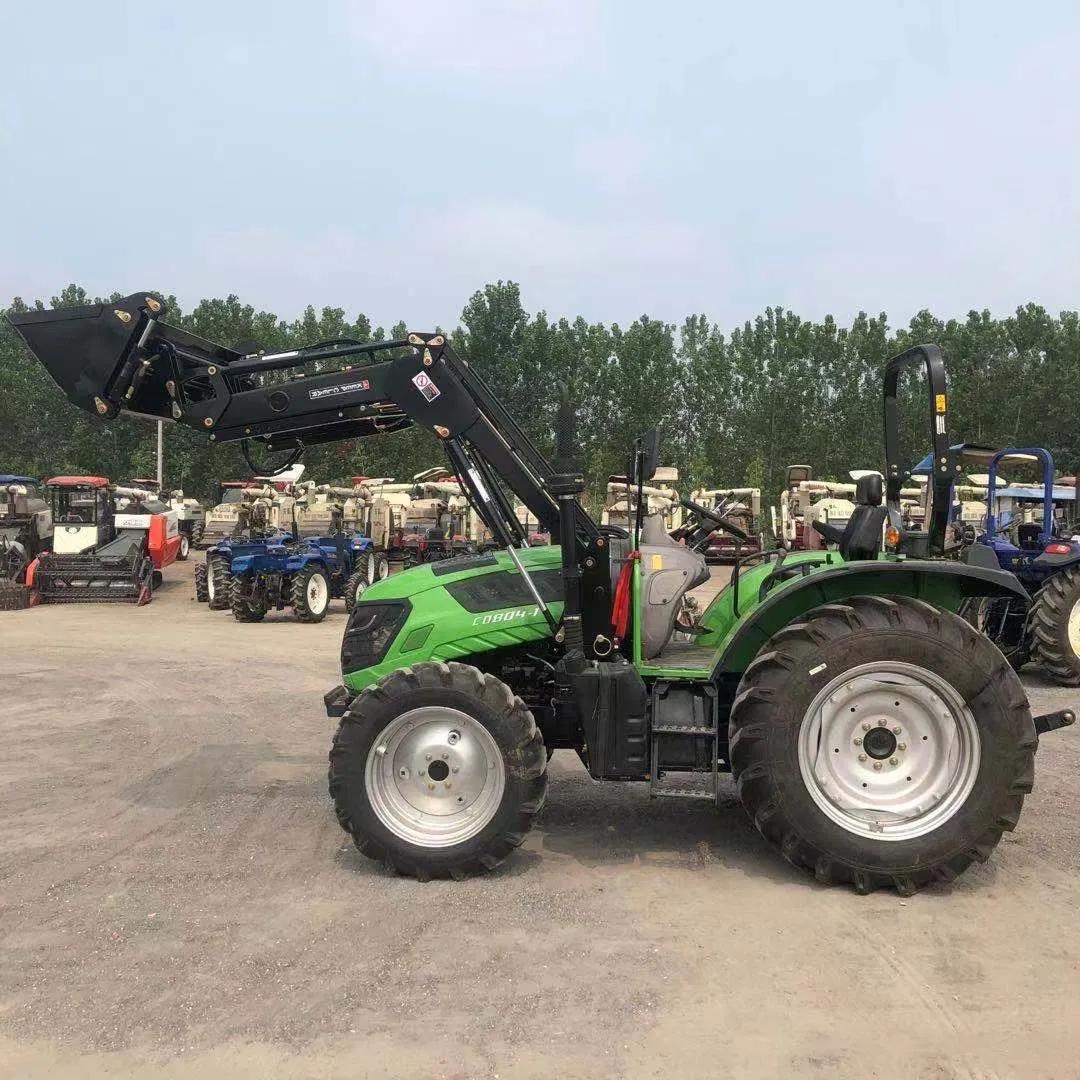

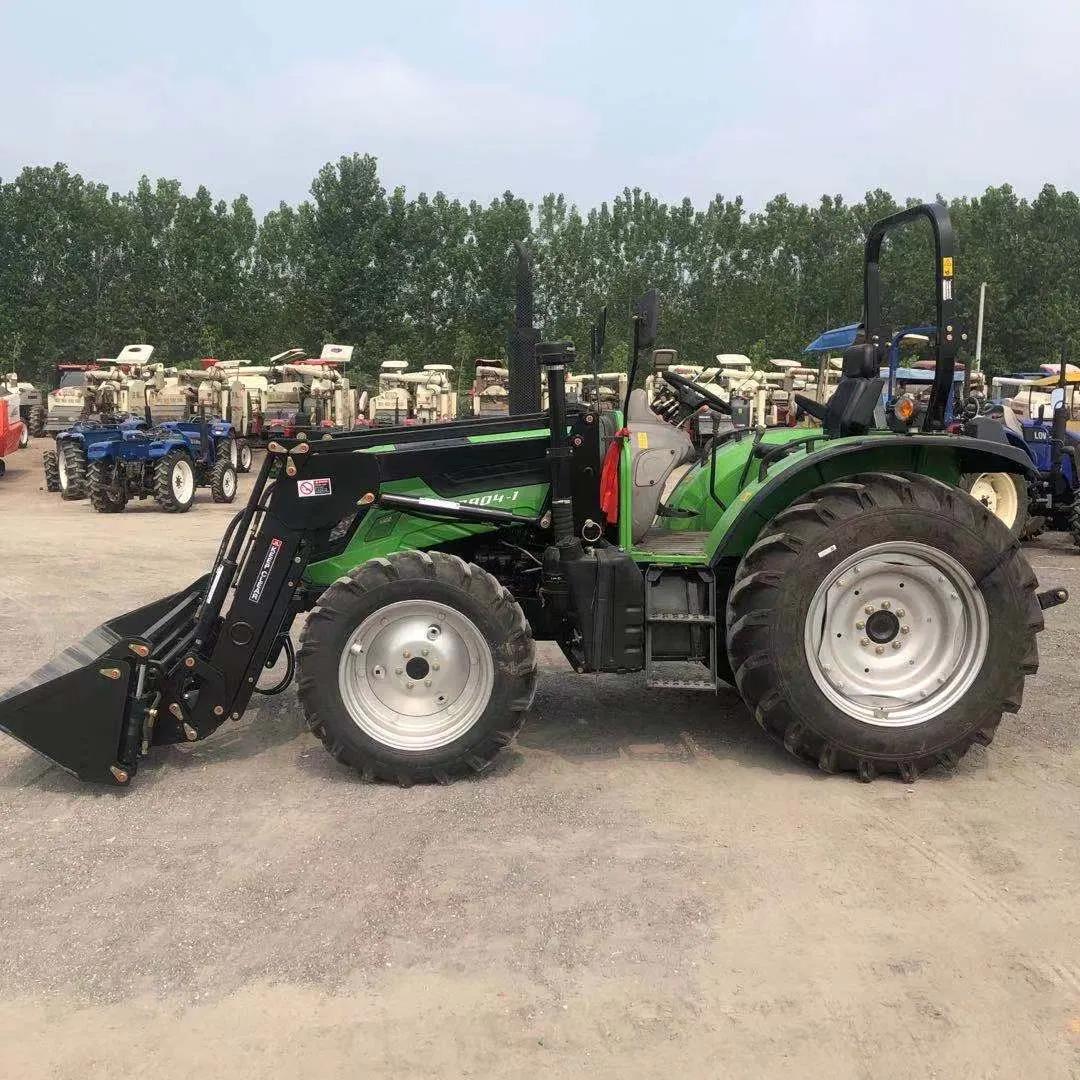

Product Details Image
Packaging & Shipping
One 20-foot general-purpose container (20GP) can hold two small tractors with 30-70 HP. One 40-foot high cube container (40HQ) can hold six small tractors with 30-70 HP. One 40-foot high cube container (40HQ) can hold three medium tractors with 80-100 HP. One 40-foot high cube container (40HQ) can hold two large tractors with 110-260 HP.
About Us
F&Q
Q: Are you a trading company or a manufacturer?
A: We are a distinguished manufacturer with a professional edge.
Q: What is your delivery time?
A: For regular stocked items, expect delivery within 7-15 days. For custom or out-of-stock goods, anticipate a delivery timeline of 30-60 days, contingent on order volume.
Q: Do you provide samples?
A: We offer samples for smaller items, whereas large or bespoke items are not eligible for sampling.
Q: What are your payment terms?
A: A 30% down payment is required, with the remaining balance due before shipment.
Q: What is your minimum order quantity?
A: Minimum order quantities vary by product. Please contact us for specific details.
Q: How to install the machines after they arrive?
A: Upon receipt of the goods, we will provide an installation video specific to the product. Follow the video for seamless installation.
Q: Can your products be customized?
A: Customization is available, provided certain conditions are met.
Q: How do you ensure the quality of your product?
A: Our expert team conducts rigorous quality inspections to ensure superior standards.
