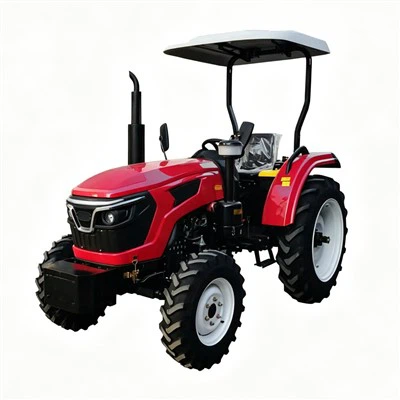

Name: China 35hp Tractor Manufacturers Suppliers Factory - Cheap 35hp Tractor Made in China - Woye
Brand: Woye
SKU: 282812106

Factory Direct Supply | High Quality Agricultural Machinery

✅ Factory Direct Supply (No Middleman Markup)

✅35HP Fuel-Efficient: 0.71L/Chinese Mu (≈10.6L/Hectare) Plowing

✅ Multi-Purpose for Farming (Plowing/Seeding/Harvesting)

✅ 8+ Years Manufacturing Experience

cj4cvopl 8

Quick Glance

Rated Power:

35HP (25.7kW)

Fuel Consumption: 8.5L/100km (No-Load)

Applications:

Plowing/Seeding

Fertilizing/Harvesting/Transport

Factory Advantage:

In-House Transmission Production

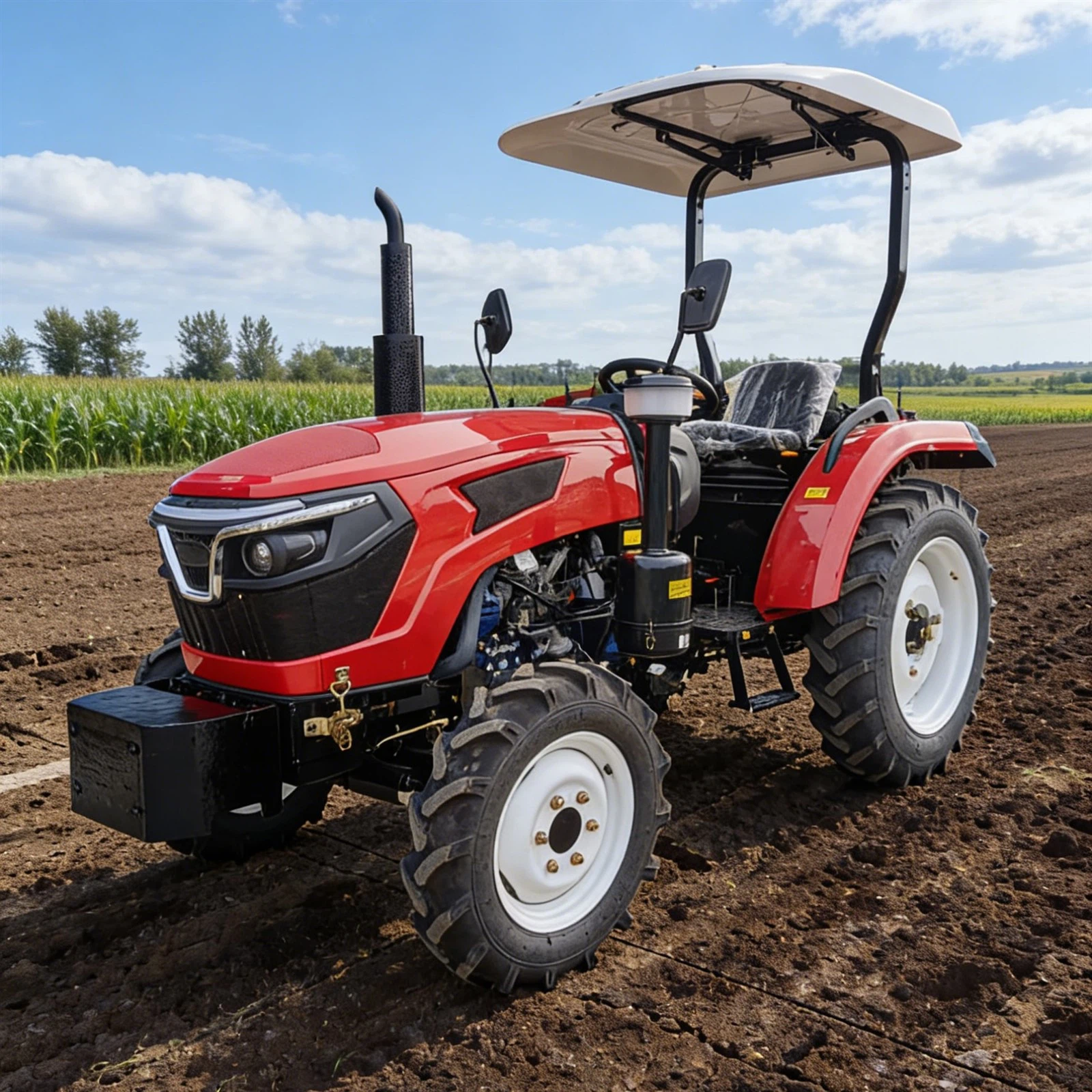

Compact Tractor: 35HP Core Highlights

Engineered specifically for narrow-row environments-including orchards, vineyards, and mountainous fruit plantations-this tractor boasts an ultra-compact turning radius of 1.08 meters, enabling seamless navigation through tight spaces. Its low-profile design safeguards branches and foliage from damage, while the fuel-efficient performance of just 3.2 liters per hour minimizes operational costs. It stands as the ideal solution for high-density orchard management and mountainous farming operations.

Key Application Scenarios

Technical Specs

Parameter	Detail
Rated Power	35 horsepower (25.7kW)
Engine Model	Changchai 4G33T / Quanchai 4C3-35V22
Engine Type	Inline 4-cylinder, Water-Cooled, 4-Stroke (Turbocharged Optional)
Displacement	2.6-3.0L
Starting Method	12V Electric Start + Manual Crank Backup
Fuel Type	Diesel (National Ⅲ+ Emission Standard)

Chassis System

Parameter	Detail
Drive Type	4×2 2WD / 4×4 4WD (Optional)
Transmission Type	Sliding Mesh / Synchronizer Shift
Forward Gears	8-12 Gears (Including High-Speed Gears)
Reverse Gears	2-4 Gears
Max Speed	28-35km/h (Forward)
Minimum Turning Radius	3.2-4.0m (4WD) / 4.5-5.0m (2WD)
Brake Type	Rear Wet Disc Brakes + Handbrake

Hydraulic & Electrical System

Parameter	Detail
Suspension Type	3-Point Category Ⅱ Hitch
Max Lifting Force	1200-1500kg (610mm Behind Hitch Points)
Hydraulic Pressure	16-18MPa
Voltage	12V
Lighting System	2 LED Headlights + 2 Rear Work Lights

Dimensions & Weight

Parameter	Detail
Overall Length	3400-3600mm
Overall Width	1550-1700mm
Overall Height	1900-2100mm (To Steering Wheel)
Wheelbase	1800-1950mm
Net Weight	1800-2200kg

Performance

cj4cvopl 9

Card 1: Field Operation Efficiency

Plowing Efficiency: 3.36 Chinese Mu/H (13.2 Mu in 4 Hours of Continuous Plowing)

Plow Depth: Stable 25cm

Soil Fragmentation: Meets Top Agricultural Standards

Sowing Efficiency: 6.12 Mu/H (18.2 Mu Sown in 3 Hours)

Sowing Depth: 3-5cm (Even Distribution, No Skips)

*3.36 Chinese Mu/Hour ≈ 0.224 Hectares/Hour

111

Card 2: Fuel Saving

No-Load Driving: 8.5L/100km (Beats Industry Average of 10L/100km)

Full-Load Plowing: 2.4L/H → ~0.71L/Mu (50% Less Than Older Inefficient Tractors)

*0.71L/Chinese Mu (≈10.6L/Hectare)

Card 3: Reliability

100 Hours Non-Stop Testing (No Maintenance)

High Temperature (40℃): Water Temp 85-90℃, No Overheating

Low Temperature (-10℃): One-Click Start, Smooth Operation

Key Components: No Significant Wear After Testing

Customization

Optional Configurations

cj4cvopl 5

Drive Type:

4×2 2WD / 4×4 4W

Counterweights:

Front

Rear Counterweights (For Stability)

PTO Shaft:

540/720r/min / 540/1000r/min (Upgrade)

Plowing Depth Sensor (Precision Control)

OEM/ODM Services

As a professional tractor factory, we offer flexible customization:

Front/Rear Counterweights

Roll Over Protection Structure

Cab Type

Enclosed / Open

Hydraulic Output Valve

Oscillating Hitch

Delivery & Service

Column 1: Packaging

LCL Shipment: Heavy-Duty Standard Export Wooden Crates

FCL Shipment: Waterproof Film + Fixed Brackets

Protection: Anti-Collision Padding for Key Components

Column 2: Shipping Terms

EXW, FOB, CFR, CIF (Optional)

Delivery Time: 7-10 Working Days After Deposit

Logistics Partner: Reputable International Freight Forwarders

Column 3: Quality Assurance

100% Factory Testing Before Delivery

Test Items: Engine Performance, Transmission, Hydraulics, Safety Features

After-Sales Support: Technical Manual + Online Guidance

Success Stories

Card 1: Southeast Asian Farmer

Location: Southeast Asia

Farm Scale: 50 Chinese Mu (Wheat & Corn)

Customer Feedback:"This machine changed everything. I plow 15 mu/day-finish 50 mu in 3 days with no hired help. Fuel costs dropped to 0.7L/mu, germination rate up 5%, and yield increased 8%. I made an extra $2,750 in 2024!"

Key Results: 8% Yield Increase | $2,750 Extra Income

Card 2: Brazilian Farm Service

Location: Brazil

Business: Farm + Agricultural Machinery Service

Customer Feedback:"This tractor is flexible-perfect for small plots. We charge $165/hectare ($66.8/acre) for plowing (20% cheaper than big tractors) and added $20,600 in service income last year. Our service area grew from 3 to 8 villages!" Key Results: $20,600 Extra Service Income | Service Area Expanded 267%"

Key Results: $20,600 Extra Service Income | Service Area Expanded 267%

FAQ

Q: Are you the direct manufacturer of the 35HP tractor?

A: Yes, we are a professional 35hp tractor factory with over 8 years of experience. We produce major transmission components in-house, ensuring quality control at every step.

Q: What are your payment terms?

A: T/T 30% as a deposit, 70% before delivery. We will share transaction records for your peace of mind.

Q: How do you ensure the tractor's quality?

A: Every tractor undergoes 100% factory testing before shipping, including engine performance, transmission, hydraulics, and safety features. We also provide a detailed test report upon request.

Q: Can I visit your factory?

A: Absolutely! We welcome overseas customers to visit our factory. We can arrange airport pickup, accommodation, and factory tour guidance.
